How to Install HVAC Line Sets Products: A Step-by-Step Guide?
Installing HVAC line sets is essential when setting up a heating, ventilation, and air conditioning system. The lineset, which typically consists of copper tubing for refrigerant, insulation, and sometimes a control wire, forms the critical connection between the outdoor condenser and the indoor evaporator unit. Proper installation ensures the efficiency and longevity of the HVAC system, as any errors can lead to leaks, reduced system performance, and even potential system failure. We will explore a detailed, step-by-step guide to help you install HVAC line sets, ensuring your system operates smoothly and efficiently.
Preparation and Safety Precautions
Before beginning the installation, preparing adequately and prioritizing safety is crucial. Start by ensuring you have all the necessary tools and materials on hand. Essential tools include a pipe cutter, flaring tool, torque wrench, nitrogen tank, brazing kit, and vacuum pump. Materials such as copper line sets, insulation, refrigerant oil, and brazing rods should also be gathered in advance. Safety is paramount, so always wear protective gear, including gloves, safety glasses, and flame-resistant clothing, when working with refrigerants and open flames during brazing.
Additionally, ensure the work area is well-ventilated to avoid inhaling harmful fumes. Before handling refrigerant, be familiar with local refrigerant handling and disposal regulations. Lastly, consult the HVAC unit’s installation manual to understand the manufacturer’s specific requirements, such as torque specifications and pipe sizing, which are critical for proper installation.
Measuring and Cutting the Line Set
Once safety precautions are in place and you are prepared, the next step involves accurately measuring and cutting the line set. Begin by determining the correct length of copper tubing required to connect the outdoor and indoor units. This measurement should account for bends, loops, and vertical runs to avoid excess or insufficient tubing. When measuring, allow extra length to accommodate any unforeseen adjustments during installation. Use a pipe cutter to cut the copper tubing to the appropriate size, ensuring a clean and straight cut to avoid complications during flaring and brazing. After cutting, remove any burrs from the edges using a deburring tool to prevent damage to the flare and ensure a tight seal. Insulating the line appropriately is essential to prevent heat loss and condensation. Slide the insulation over the copper tubing before moving on to the next step, as it can be challenging to add insulation after the line set is connected.
Flushing and Brazing the Line Set
The next step is to flush the line set with nitrogen before brazing. This process removes any debris, moisture, and oxygen that could contaminate the refrigerant and damage the system Black Friday Sale. Connect the nitrogen tank to one end of the copper tubing and allow a steady flow of nitrogen to pass through the line set for a few minutes. Ensure the opposite end of the tubing is open to allow the nitrogen to exit. After flushing, it is time to braze the connections. Brazing involves joining the copper tubing to the HVAC units using a brazing rod and an open flame. Begin by heating the joint area evenly with a torch until it reaches the correct temperature. Then, apply the brazing rod to the joint, allowing the metal to flow into the connection and create a secure bond. Be sure to keep the nitrogen flowing during brazing to prevent oxidation inside the tubing. Once brazing is complete, allow the joints to cool naturally. Do not cool them with water, which can cause cracks and weaken the connection.
Vacuuming the Line Set

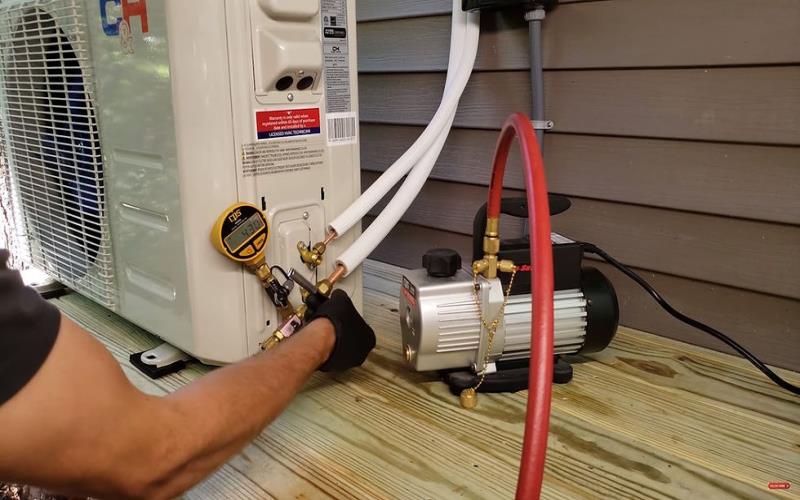

After brazing, the next crucial step is to vacuum the line set. This process removes any remaining moisture and non-condensable gases from the system, ensuring the refrigerant operates efficiently and preventing damage to the compressor. Connect a vacuum pump to the service valve on the outdoor unit and create a vacuum within the line set. The vacuum level should reach below 500 microns, which indicates the system is free of air and moisture. Maintaining the vacuum for at least 30 minutes ensures thorough evacuation. After the vacuum, close the service valve to seal the line set. Monitor the vacuum gauge for any rise in pressure, which could indicate a leak. The line set is ready for refrigerant charging if the vacuum holds steady. Proper vacuuming is critical to the performance and longevity of the HVAC system, so do not rush this step.
Installing HVAC line sets requires careful planning, precision, and attention to detail. You can ensure a seamless installation process by following the steps outlined in this guide, from preparation and safety precautions to charging the system and conducting final checks. Proper installation enhances the efficiency and longevity of the HVAC system and helps prevent common issues such as refrigerant leaks and system malfunctions. Remember that every step, from cutting the line set to vacuuming and charging the system, plays a critical role in the overall performance of the HVAC system. Taking the time to do each step correctly will pay off in the long run with a system that operates smoothly and efficiently.
